Fuse Voltage Drop Chart

Web circuit current across fuse (milliamps) fuse color. It also shows the different fuses (mini or standard) with the amperage Mv 2 amp 3 amp 4 amp 5 amp 7.5 amp. Cold resistance is the resistance obtained using a For exceptions, see voltage rating.

The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. Web the following chart is used to determine the amperage across a circuit by measuring the voltage drop across the fuse and comparing it against the fuse rating. Voltage drop becomes important when the length of a run of wire or cable becomes very long. Web most fuses are manufactured from materials which have positive temperature coefficients, and, therefore, it is common to refer to cold resistance and hot resistance (voltage drop at rated current), with actual operation being somewhere in between. Web circuit current across fuse (milliamps) fuse color.

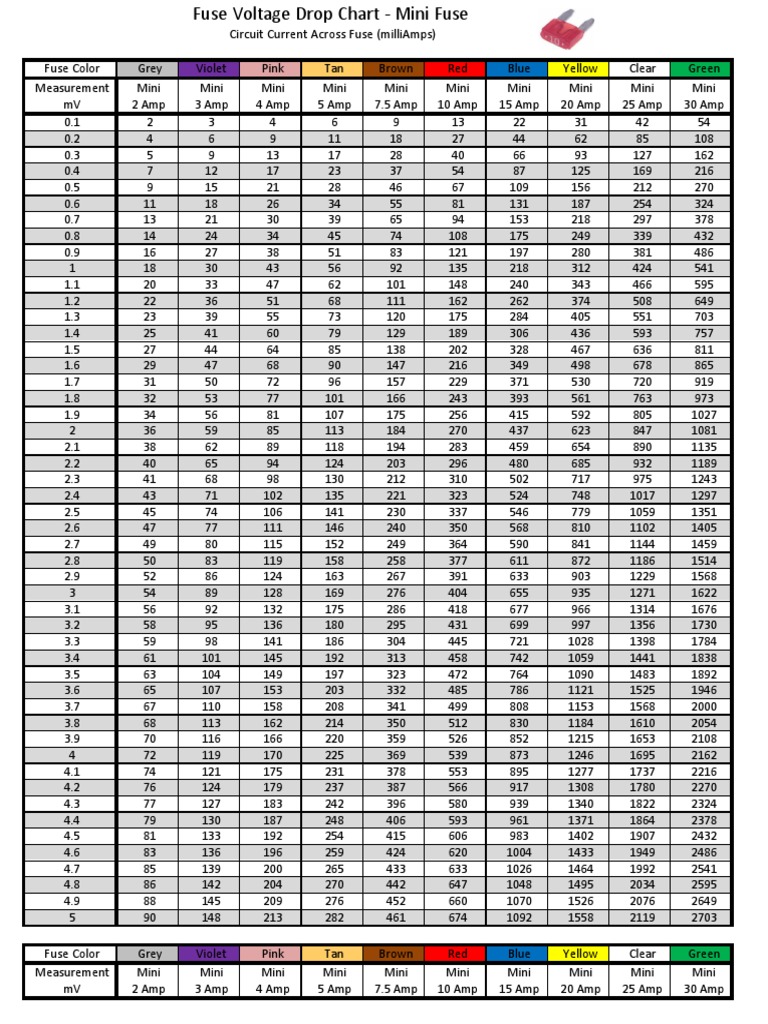

Web the following chart is used to determine the amperage across a circuit by measuring the voltage drop across the fuse and comparing it against the fuse rating. The current draw matrix shows the measured voltage drop (vd) across the fuse in the left hand column. The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. For exceptions, see voltage rating. Web most fuses are manufactured from materials which have positive temperature coefficients, and, therefore, it is common to refer to cold resistance and hot resistance (voltage drop at rated current), with actual operation being somewhere in between.
